| Luogo di origine: | Made In China |
| Marca: | Infinity Machine |
| Certificazione: | CE ISO |
| Numero di modello: | ID6150 |
| Quantità di ordine minimo: | 1 |
|---|---|
| Prezzo: | Negotiate |
| Imballaggi particolari: | Clear sheet+sponge+wood carton |
| Tempi di consegna: | 20-30 days after order confirmed |
| Termini di pagamento: | TT PAYPAL Moneygram and so on |
| Capacità di alimentazione: | 200 sets / month |
| Altezza di prova:: | 50-1200 mm | Intervallo di velocità dell'asse Z:: | 1-200 mm/s |
|---|---|---|---|
| Percorso dell'asse Y:: | 300 mm | La gamma di velocità dell'asse X:: | 1~100 mm/s |

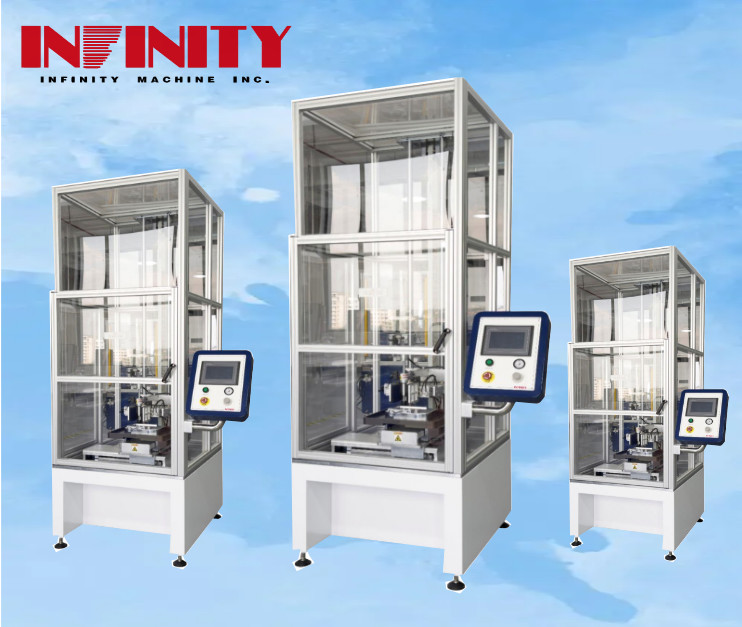

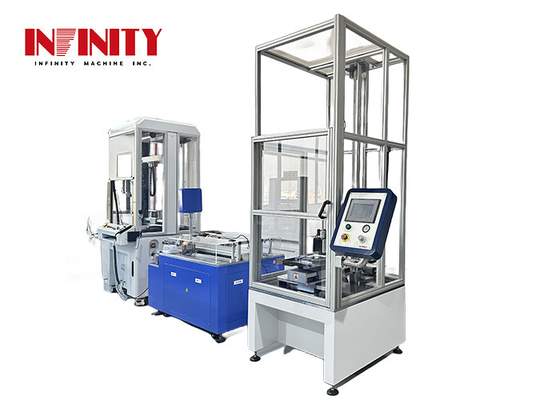

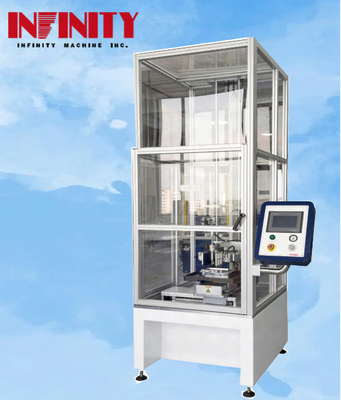

| Dimensione dell'attrezzatura:: | 1140 × 1200 × 2700 mm | Nome del prodotto: | Macchina di prova automatica a tre assi per l'impatto con palla a caduta |
| Percorso dell'asse X:: | 420 mm | Specificità della sfera di acciaio:: | 20 g, 500 g, o come specificato |
The machine features an Acrylic ball specification of 160g, which can be easily adjusted to meet your specific testing needs. The X-axis itinerary of 420mm and Y-axis itinerary of 300mm provide ample space for various material sizes and shapes.
The Y-axis velocity range of 1~100mm/s and the X-axis speed range of 1~100mm/s allow for precise adjustments to the impact force and speed. This ensures that your tests are performed with the utmost accuracy and repeatability.
The Drop Ball-impact Tester is ideal for testing a wide range of materials, including plastics, metals, and composites. It is commonly used in industries such as automotive, aerospace, and construction to evaluate the impact resistance of materials used in their products.
With its user-friendly interface and high accuracy, the Drop Ball-impact Tester is a must-have for any laboratory that requires reliable and repeatable impact testing results.
Also known as: Drop Ball-impact Tester, Three-axis Automatic Drop Ball Machine
Device control interface:
| Product Name | Three-axis Automatic Drop Ball-impact Test Machine |
|---|---|
| Height Error | ±1mm |
| Test Height | 50-1200mm |
| X-axis Itinerary | 420mm |
| Steel Ball Specifications | 20g, 500g, Or As Specified |
| Y-axis Itinerary | 300mm |

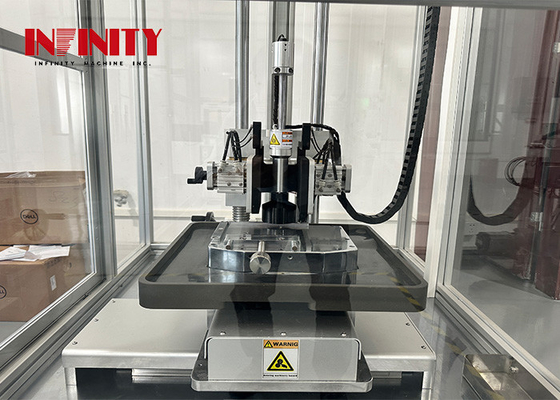

| Features | The Equipment Uses Vacuum Adsorption Method To Absorb Steel Balls, Which Is More Accurate Than The Mechanical Claw Drop Method. At The Same Time, With The Integrated High-speed X-Y Platform, It Can Be Programmed To Realize Automatic Multi-point Cycle Test And Improve The Test Efficiency. X, Y And Z Axis Are Driven By Japan Panasonic Servo Motor, Precision Ball Screw Drive, Low Noise And Durable Use. Language Has Simplified / English Interface, Suitable For Global Customers. Software Operation Interface Is Simple And Easy To Operate. The Program Has A Designed Anti-stay Function To Ensure The Accuracy And Safety Of Each Test. Unique Automatic Reset And Automatic Pickup Function, Can Realize Unattended And Automatic Cycle Test. According To The Conventional Test Setting Parameters, The Steel Ball Impacts On The Sample During Starting And Running, And The Steel Ball Springs And Is Clamped By The Splint To Prevent Secondary Impact On The Sample. When The XY Platform Is Positioned At The Position Of The Cone Hole And The Ball Coaxis, The Cylinder Is Released And Drops The Steel Ball, And The Steel Ball Is Automatically Reset To The Center Of The Cone Hole. After The Z Axis Drops The Ball, The Cycle Is Executed. The Whole Machine Adopts Floor Structure Design, The Operation Panel Can Rotate, So That The Operator Closer To The Test Area, More Convenient Sample Loading And Unloading. The Equipment Provides The Perfect Fault Detection Mechanism Of The Operation State, And Provides The Corresponding Error Information Prompt, And Conducts Real-time Detection And Processing Of Servo Failure, Sensor Fault, X, Y And Z Axis Limit Fault, So As To Maximize The Protection Of Personal And Equipment Safety. The Device Is Equipped With Infrared Laser Function, Which Can Accurately Locate The Position Of The Landing Point And Facilitate The Tester To Accurately Determine The Test Position. The Test Formula Is Stored In The ROM Of The System, Which Is Simple And Convenient To Read And Change The Test Position. |
| Y-axis Velocity Range | 1~100mm/s |
| Working Power Supply | AC220V 2A 50Hz |
| Weight of Equipment | About 530 Kg |
Action flow chart:
The machine adopts PLC control mode, the suction nozzle uses vacuum negative pressure, holding different sizes of steel balls, press the drop button, the suction nozzle, the steel ball will be used as free fall test, impact the surface of the sample, and test the impact resistance of the sample, which is suitable for the impact test of mobile phone, tablet, audio and other electronic products.
Our Impact Testing Machine product is backed by comprehensive technical support and services to ensure optimal performance and longevity. Our experienced technicians are available to provide installation, calibration, and maintenance services to keep your machine running smoothly. We also offer training programs to help you and your team get the most out of your testing equipment. In addition, our technical support team is available to provide assistance with any questions or issues you may have with your machine. Contact us today to learn more about our product support and services.
Product Packaging:
The Impact Testing Machine will be packaged securely in a sturdy wooden crate to ensure safe transportation. The crate will be lined with foam to prevent any damage to the machine during shipping. The machine will be disassembled and securely fastened to prevent any movement or damage during transit. The packaging will also include an instruction manual and any necessary accessories.
Shipping:
The Impact Testing Machine will be shipped via a reputable carrier such as DHL, FedEx or UPS. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided to the customer upon shipment. A tracking number will also be provided for the customer to track the shipment and ensure timely delivery.
Q1: What is the brand name of the impact testing machine?
A1: The brand name of the impact testing machine is Infinity Machine.
Q2: What is the model number of the impact testing machine?
A2: The model number of the impact testing machine is ID6150.
Q3: Where is the impact testing machine made?
A3: The impact testing machine is made in China.
Q4: What certifications does the impact testing machine have?
A4: The impact testing machine has CE and ISO certifications.
Q5: What are the payment terms for purchasing the impact testing machine?
A5: The payment terms for purchasing the impact testing machine are TT, PayPal, Moneygram, and so on.
